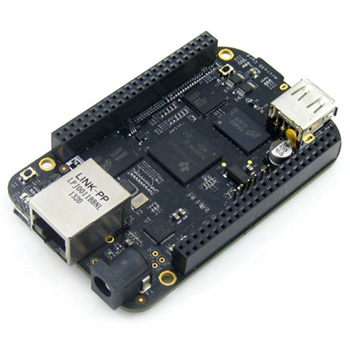

BeagleBone Black is the next generation open-source computer that is a credit-card-sized Linux computer using a low cost SitaraTM AM3359 Cortex-A8 ARM® processor from Texas Instruments. It offers higher performance and ready-to-use out-of-box convenience at half the price of the original BeagleBone and with all the necessary accessories in the box. Whether operating standalone or in conjunction with another computer, BeagleBone Black will provide developers easy access to industry standard interfaces and a well-developed ecosystem of software and tools. The original BeagleBone's cape plug-in boards are mostly compatible with the BeagleBone Black, making easy integration with previous projects yet another advantage. Experiment with Linux, Android and Ubuntu and jump-start development within five minutes!



Hardware Features

• General Specifications:

   • Dimensions: 86.36 mm×54.61mm

   • Operation Temperature: 0 ~ 70

   • Operating Humidity: 20% ~ 90% (Non-Condensing)

   • Power Supply: 5V/0.35A



• AM3359 Processor:

   • Integrating 1GHz ARM Cortex™-A8 core

   • Integrating NEON™ SIMD coprocessor

   • Integrating SGX530 graphics engine

   • Integrating programmable real-time unit subsystem

   • Integrating 32KB instruction buffer and 32KB data buffer with single-error detection (parity)

   • Integrating 256KB L2 cache with error-check code



• On-Board Memories:

   • 4GB 8-bit eMMC on-board flash storage (rev. 3)

   • 512MB DDR3 SDRAM



• On-Board Interfaces:

   • 1 HDMI D type interface (16-bit color with audio output)

   • 1 LCD interface (24-bit output, extended by P8 interface)

   • 1 10/100M Ethernet (RJ45 connector)

   • 1 high-speed USB 2.0 OTG interface with PHY (Mini USB type-B connector)

   • 1 high-speed USB 2.0 HOST interface with PHY (USB type-A connector)

   • 1 TF card slot (SD/MMC)

   • 1 3-line debugging serial interface (6-pin 2.54-pitch connector)

   • 1 HDMI type-D interface

   • 1 expansion interface for LCD, UART, eMMC, ADC, I2C, SPI and PWM

   • 1 JTAG interface (optional item, 20-pin standard interface, no connector mounted by default)



• Buttons & LEDs:

   • 1 boot device selection button

   • 1 power button

   • 1 reset button

   • 1 LED power indicator

System Block Diagram



Software Features

Items		Notes
OS		Debian, Angstrom, Ubuntu, Android
Device Driver	Uart	Uart Driver
	Ehternet	10/100 IEEE1588
	Display	HDMI Driver
	mmc/sd	SD 2.0 /eMMC Driver
	USB	High speed USB Host Driver
	Led	User LED Driver

Package list



main board*1

mini usb cable *1
