An iPhone 5, iPhone 4S, iPad mini, iPad with Retina display (4th gen),
iPad (3rd gen) or iPod touch (5th gen) plus our App from iTunes App
Store. You could also develop your own iOS App using our open source SDK
or iOS's CoreBluetooth Framework.
Or a second BLE Mini (require Central role support which will be available in March 2013)
Features

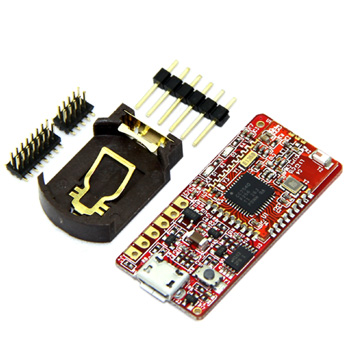

Simple interface - with our pre-loaded firmware code name 'Biscuit', you
could easily connect to any development board or IC with UART
interface.
Compact form factor - this is a very popular request from makers using
smaller Arduino boards like Arduino Mini/Micro/Nano/Pro Mini etc.
Support Central or Peripheral role - it can connect to other BLE Mini or
BLE Shield, not just iOS device. (Central role support will be
available in March 2013)
Standalone operation - Ti's CC2540 is a SoC (System-on-Chip) IC that can
operate without any external microcontroller. You can develop your own
firmware using IAR Embedded Workbench, all I/O pins of CC2540 are
accessible.
Firmware upgradable - develop your own or download a "pre-packaged"
firmware and upload to BLE Mini via the USB connector, Ti CC Debugger
is not required.
