Description:

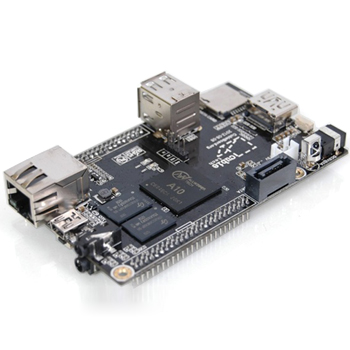

The Cubieboard1 is a mini pc developer platform based on Allwinner A10, Compared with Raspberry Pi, it has a very wide range of IO options. The board is set apart by offering SATA and an extended pin interface for low level access to the SOC.

Specifications:

CPU: 1G ARM cortex-A8 processor, NEON, VFPv3, 256KB L2 cache.

GPU: Mali400, OpenGL ES GPU.

Memory: 1GB DDR3 @480MHz.

Video output: HDMI 1080p Output.

Network: 10/100M Ethernet.

Internal storage:4GB NAND Flash.

IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1IR.

Extended interfaces: 96 extend pins including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP.etc

Supports systems: Running Android, Ubuntu and other Linux distributions.

Power supply:5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug.

Features:

Allwinner A10 SOC

96  extended pin interface

Built-in IR receiver

SATA supported

Supports 2.4GHz wireless keyboard and mouse

Package List:

Cubieboard 1 main board*1

USB power cable*1

SATA cable*1
