Near Field Communication (NFC) is a set of short-range wireless
technologies. It's behind daily applications such as access control
system and mobile payment system.

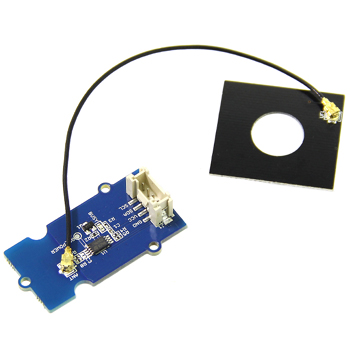

Grove NFC features a highly integrated transceiver module PN532 which
handles contactless communication at 13.56MHz. You can read and write a
13.56MHz tag with this module or implement point to point data exchange
with two NFCs. Grove NFC is designed to use I2C or UART communication
protocols, and UART is the default mode. In addition, we assign an
independent PCB antenna which can easily stretch out of any enclosure
you use, leaving more room for you to design the exterior of your
project.
Specification
Working Voltage: 3.3V
Working Current:
Static Mode: 73mA
Write/Read Mode: 83mA
Support host interface: I2C, UART(default).
Serve for contactless communication at 13.56MHz.
Support ISO14443 Type A and Type B protocols.
Max operating distance for detecting NFC tags is 28mm depending on current antenna size.
