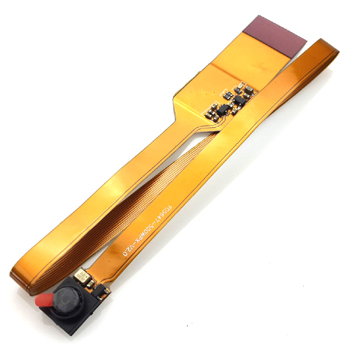

Product Description:
The
board itself is tiny, at around 300mm x 16mm. The neck width of the camera
module is 6mm, this highlight making it perfect for endoscope, spy surveillance
or other applications where size and image quality are important. It connects
to any Raspberry Pi by way of a short ribbon cable. The camera is connected to
the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth
link which carries pixel data from the camera back to the processor. This bus
travels along the ribbon cable that attaches the camera board to the Pi.
The sensor itself has a native resolution of 5
megapixel, and has a fixed focus lens onboard. In terms of still images, the
camera is capable of 2592 x 1944 pixel static images, and also supports
1080p30, 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi by way of
one of the two small sockets on the board upper surface. This interface uses
the dedicated CSI interface, which was designed especially for interfacing to
cameras. The CSI bus is capable of extremely high data rates, and it
exclusively carries pixel data. The camera is supported in the latest version
of Raspbian, Raspberry Pi's preferred operating system.
Features:
Angle
of View: 54 x 41 degrees
Field
of View: 2.0 x 1.33 m at 2 m
Full-frame
SLR lens equivalent: 35 mm
Fixed
Focus: 1 m to infinity
Max
frame rate: 30fps
Size:
300 x 16 mm flex cable, neck wide is 6mm
Package Included:
Raspberry Pi Spy Camera Module with Flex Cable x1
