Features:

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it's class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Newly designed EMAX RS2205 2300KV high-end brushless motor for FPV racing multirotors Cooling Series.Provided by Crazepony on Amazon.

CW and CCW propeller adapters,preventing the propeller from getting rid off.The Rotation direction of motor was marked on the from bell,making it easier to determine rotation direction for CW and CCW motors.

Bring your eyes into the sky and racing like a free bird, enjoy the ultimate first person view experience.

Product Description:

Emax RS2205 Race Spec Motors
Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it's class, every motor is precision crafted within tight tolerances.
Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This "cool" feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.
N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.
Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.
Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.
Key Features:
1K+ Thrust with 4s battery and recommend propeller combo
Highest Grade N52 Neodymium magnets
15mm Extended Prop Shaft allows virtually any prop with 5mm hole.
3 Lock nuts and 2 sets of motor screws for 3mm and 4mm thick frames.
Specifications:
Model: RS2205
KV: 2300kv
Weight: Approx. 30g with wires
Wire AWG: 20AWG
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
Configuration: 12N14P
Motor Diameter: 27.9mm
Prop Adapter Shaft Thread: M5
Input voltage: 3S-4S (12.6 - 16.8v)
KV2300 With HQ5045 BN Max.thrust:1024g
KV2600 With HQ4045 BN Max.thrust:763g

Package Included:

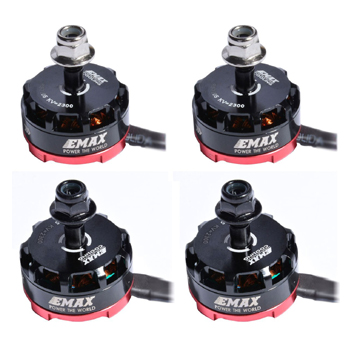

RS2205 2300KV Brushless Motor(CW)*2

RS2205 2300KV Brushless Motor(CCW)*2
