Product Features

1. SOC:Actions SOC S500，ARM Cortex-A9 Quad-Core CPU,Imagination PowerVR SGX544 GPU

2. Memory:2GB LPDDR3

3. Storage:8GB eMMC

4. Card:Micro SD card slot, up to 32GB

5. SATA:Support 2.5 inch HDD/SSD up to 4TB

6. USB:USB HOST Port x2, and USB Device port x1

7. Display:HDMI Port A, HDMI V1.4a, support 1080P@60Hz resolution

8. Ethernet:10M/100M RJ45

9. Wireless:Wifi, Bluetooth

10. IR:Infrared remote receiver Philips standard

11. Audio:Support 3.5 headphone jack for Audio output, Support 3.5 jack for Line-In

12. Power:DCIN 5V@2.5A power, Support USB power input

13. Battery:Support 3.7V Li-Po battery power the board

14. RTC:Support RTC circuit and RTC rechargeable battery 3.0V

15. Keys:Power key, ADFU key for reflashing the ROM/Image

16. LEDs:Power Led x 1, User Led x 2

17. Expansion Pins:I2C, CSI for camera, FM-IN, ADC, CVBS output, Audio output, RGB, LVDS, Mipi DSI, SPI, HSIC, INT GPIO

Package list：

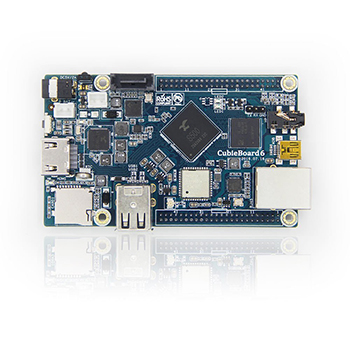

cubieboard6 board x1

SATA  cable x1

Mini USB to OTG x1

Power cable  x1

Sin fin x1

antenna x1
