radxa rock lite

Radxa Rock Lite #10474

(0) Write a review 2 Likes 13 Orders

US$ 64.⁹⁰

Bulk Price

The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.

Quantity:: Stock (All: 0 pcs.)

Arrival Notice

Out Of Stock Add to favorite

Return Policy:

Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

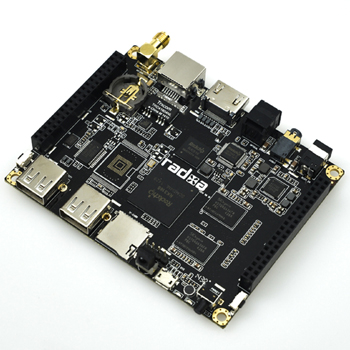

Radxa Rock is a cutdown version of radxa produce family， single-board computer, based on RK3188, integrated with WiFi, LAN, RTC, IR Lvds,Camera speaker and etc. The CPU is ARM Cortex-A9 with Quad-core at 1.6Ghz, and also including GPU that support OpenGL ES 2.0. It means you play 1080p videos, and output with HDMI.The only differences between Radxa Rock Pro and Radxa Rock Lite are the memory capacity (2GB vs 1GB RAM), the lack of NAND flash on Radxa Rock Lite (8GB on the Pro version), and Bluetooth 4.0 is not available on the Lite version. The rest of the features, including the camera and LVDS ports, are identical, and both board are hardware and software compatible.

You can be expanded via MicroSD card that supports SDXC cards up to 128GB. As a barebones single-board computer, the key feature for developers however will be the dual 40-pin headers that provide a range of extra goodies including ‘GPIO, I2C, SPI, Line in, USB 2.0, PWM, ADC, LCD, GPS’ and more.

Features:

ARM Cortex-A9, Quad Core at RK3188 SoC
Supported WiFi,LAN
USB Host and USB OTG
HDMI, supported 1080p@60Hz
Supported Linux, Android, FreeBSD
RTC On-board

Specification:

CPU	ARM Cortex-A9 quad core @ 1.6Ghz
Memory	1GB DDR3 @ 800Mhz
Storage	Micro-SD SDXC up to 128GB
GPU	Mali400-mp4@533Mhz, OpenGL ES 2.0
Digital Video	HDMI 1.4 up to 1080p@60Hz
Analog Video	AV output
LAN	10/100M Ethernet port
WIFI	150Mbps 802.11b/g/n with antenna
Bluetooth	NO
Audio	S/PDIF, headphone jack
USB HOST	2 USB 2.0 standard A type
USB OTG	USB OTG micro-USB connector
Serial	Serial Console for debugging
IR	Support self defined IR remote
Key	1 power key, 1 recovery key, 1 reset key
Led	3 programable leds
RTC	Support power off alarm
Extend header	80 pins including GPIO, I2C, SPI, Line in, USB 2.0, PWM, ADC, LCD, GPS etc
