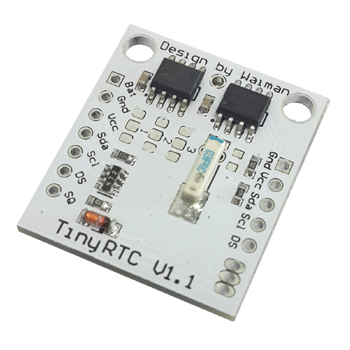

The DS1307 Real Time Clock developed by one of our designers:
Waiman. The module comes fully assembled and pre-programmed with the
current time (ok, so it's our current time - MST). The included Lithium
coin cell battery (CR1225 41mAh) will run the module for a minimum of 9
years (17 years typical) without external 5V power. The DS1307 is
accessed via the I2C protocol.
Except the DS1307 real time clock, the module also integrate the
I2C EEPROM chip(24C32) and the DS18B20 sensor interface. The I2C EEPROM
makes it possible to save the sensor data easily without spending too
much microcontroller source. And the DS18B20 interface with the pull-up
resistor embeded will be helpful to extend temperature monitoring
feature for your project.
Parameters:
Working voltage: 5v
Two wire I2C interface
Hour : Minutes : Seconds AM/PM
Day Month, Date - Year
Leap year compensation
Accurate calendar up to year 2100
Consumes Less than 500nA in Battery-Backup
Battery included
1Hz output pin
56 Bytes of Non-volatile memory available to user
provides 32,768 bits(4KB) of serial electrically erasable and programmable
read only memory (EEPROM)
Embed DS18B20 temperature sensor interface with the pull-up resistor
