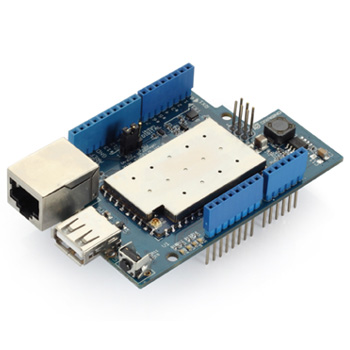

Yun
Shield is one of the most powerful shields for Arduino Board. Yun Shield is
designed to solve the Internet connectivity and storage issue for Arduino
Board.
Yun Shield runs Open Source OpenWrt system (Same
system as runs in Arduino Yun) and it is fully compatible with Arduino IDE
v1.5.4 or later. Yun Shield is the ideally choice for Arduino Projects which
require various internet connections and more storage.
Basically, Yun Shield + Leonardo equally to the
official Arduino Yun, but Yun Shield is more flexible because it can work with
other Arduino board such as Uno, Duemilanove, Mega etc. And Yun Shield uses
external wifi antenna which provides stability and possibility for various
environments.
Features:
•Open source Linux (OpenWrt) inside
•Low power consumption
•Compatible with Arduino IDE 1.5.4 or later, user
can program, debug or upload sketch to Arduino board via Arduino IDE.
•Managed by Web GUI, SSH via LAN or WiFi
•Software upgradable via network
•Built-in web server
•Support internet connection via LAN port, WiFi or
3G dongle.
•Support USB flash to provide storage for Arduino
projects.
•Failsafe design provides robustly system.
•Compatible with Arduino Leonardo, Uno ,
Duemilanove, Diecimila, Mega
Specifications:
•Processor:
400MHz, 24K MIPS
•Flash: 16MBytes
•RAM: 64MBytes
•Power Input: 4.75v ~ 23v via Arduino VIN pin
•1 x 10M/100M RJ45 connector
•150M WiFi 802.11 b/g/n
•External Antenna via I-Pex connector
•1 x USB 2.0 host connector, used for USB storage
or 3G connection
•1 x Reset button
•Compatible with 3.3v or 5v I/O Arduino.
Package Include:
Yun Shield *1
PCB
Antenna *1
